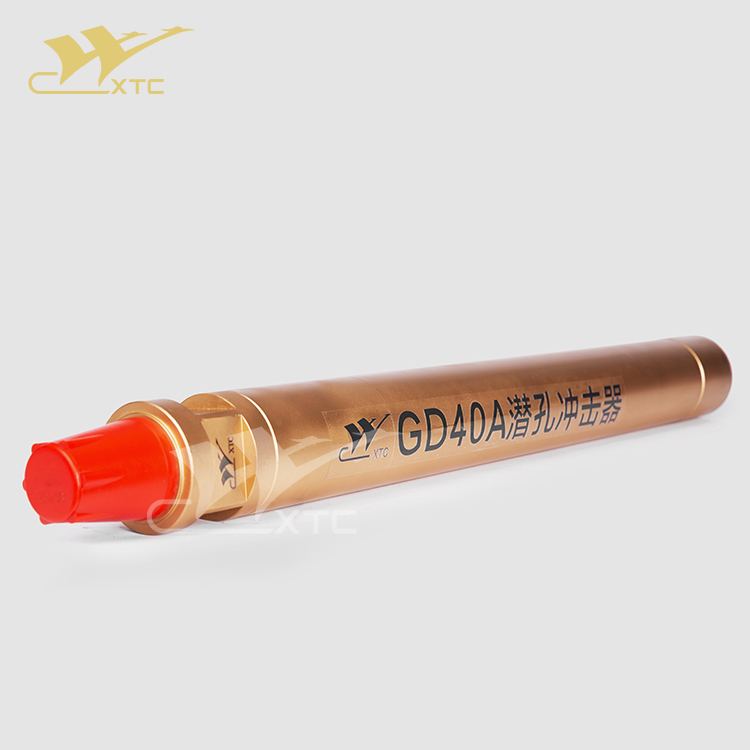

XTC 6英寸高压潜孔冲击器
$800-1000 /
| 最小订单: | 1 |
品牌: XTC
Origin: 中国
The file is encrypted. Please fill in the following information to continue accessing it
产品类别:潜孔锤 产品关键词:6 英寸潜孔锤、API 3-1/2'' Reg 潜孔锤、高风压潜孔锤 6 英寸
6 英寸潜孔锤是一款专门为各个行业的高性能应用而设计的钻孔工具。这款特殊型号的 API 3-1/2'' Reg 潜孔锤经过精心设计,可在苛刻的条件下提供卓越的效率和耐用性。高气压潜孔锤 6 英寸变体提供增强的功率和精度,使其成为在操作中需要可靠和一致性能的专业人士的理想选择。
6 英寸潜孔锤的主要特点之一是能够在高气压下运行,从而显着提高钻井速度并减少停机时间。这使得它特别适合在时间和效率至关重要的环境中使用。 API 3-1/2'' Reg 潜孔锤还以其坚固的结构而闻名,即使在恶劣的工作条件下也能确保长期可靠性。其设计易于维护和更换组件,进一步提高其整体价值和使用寿命。
API 3-1/2'' Reg 潜孔锤特别适合需要精确和受控钻孔的应用。它能够长期保持一致的性能,使其成为可靠性至关重要的长期项目的绝佳选择。高气压潜孔锤 6 英寸型号也非常适合在电源有限的区域使用,因为它使用压缩空气而不是电力来高效运行。
用户报告说,与传统钻孔方法相比,6 英寸潜孔锤可提供卓越的效果。它能够处理岩石和硬土等坚硬材料,使其成为许多工业环境中的首选。高气压和耐用结构的结合确保该工具能够承受连续使用的严酷环境,而不会影响性能。
潜孔锤产品参数:
1.高气压潜孔钻锤。
2.高气压孔直径:155-203mm
3.端面类型:圆心钻头/凹面/凸面/双规面/平面钻头
4、硬质合金钮扣形状:圆顶/圆形钮扣 抛物线/半弹道钮扣 弹道钮扣 尖钮 平钮
5. 钻岩类型:花岗岩、大理石、石灰石、玄武岩等。
6.应用:采石、露天采矿、地下采矿、钻井、基础钻探。
Model |
GD60W |
Foot Valve |
Yes |
Recommended Rotation Speed |
20-40r/min |
Air Pressure |
High 1.0-2.5Mpa |
Impact Rate under 1.7Mpa |
23Hz |
Air Consumption |
9m3-26 m3/min |
OD |
142mm |
Total Length (without bit) |
1248mm |
Total Weight (without bit) |
100kg |
Hole Range |
155mm-203mm |
Connection Thread |
API 3 1/2’’ Reg |
Bit Shank |
DHD340A, COP44, QL 340, Terranox 4 |
Application |
Quarrying, Surface Mining, Underground Mining, Well Drilling, Foundation Drilling, DTH drilling tools |
