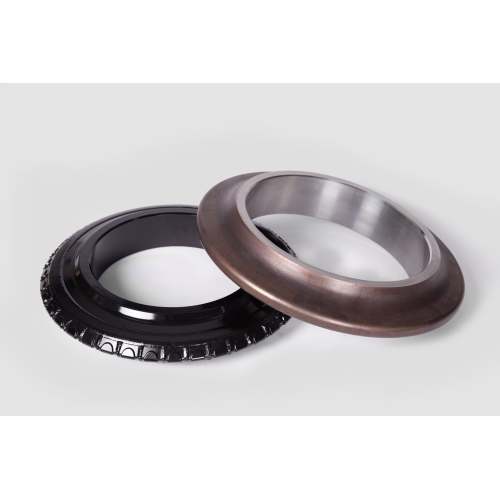

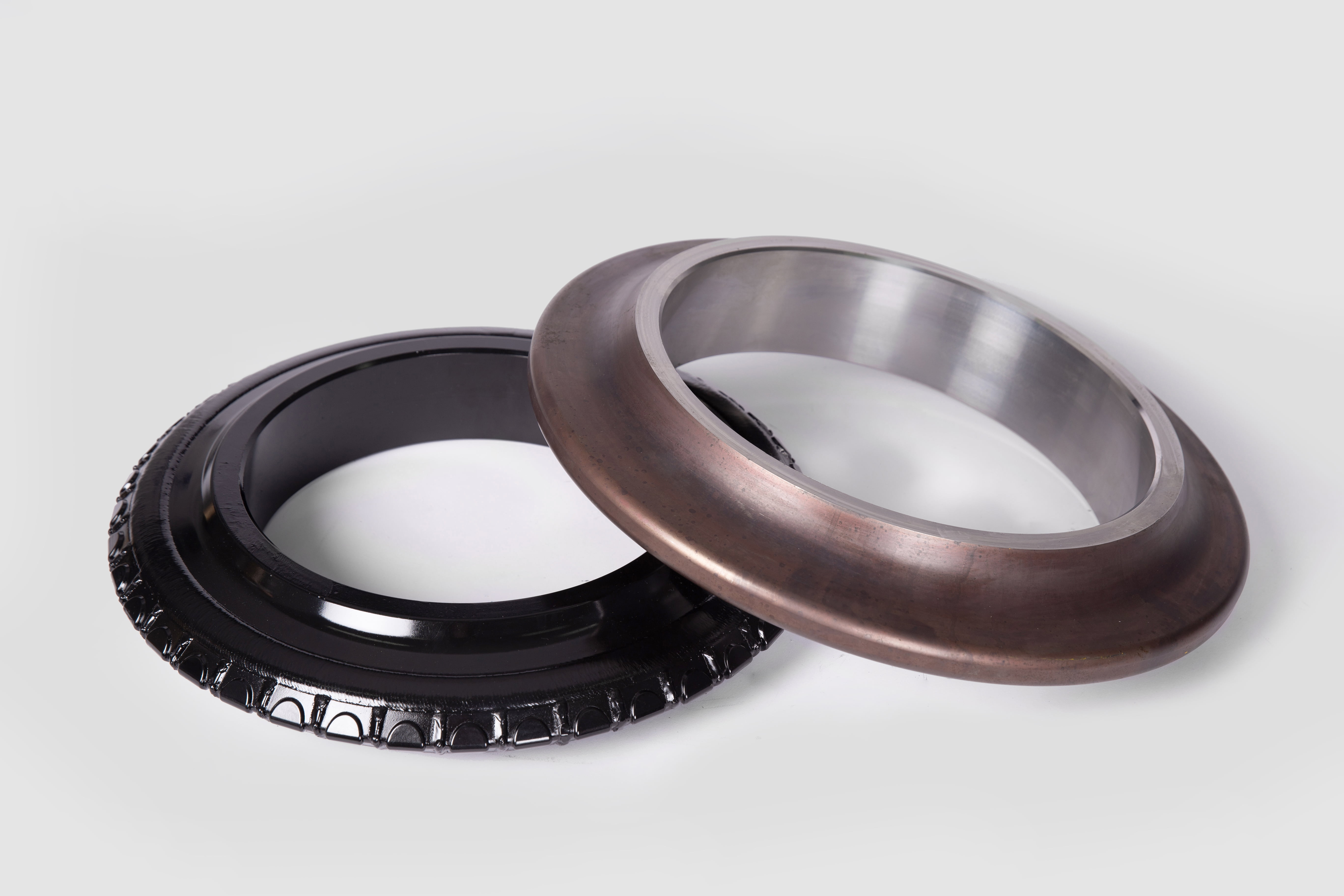

手机号: TBM Cutter Ring; Carbide Button Inserted Cutter Ring; Hard-faced Cutter Ring
品牌: XTC
Origin: 中国
证明: DIN
地位: New
Applicable Industry: Construction Works, Energy &Amp; Mining, Retail, Other
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, France, Canada, Germany, Turkey, Viet Nam, United Kingdom, Philippines, United States, Brazil, Italy, Peru, Thailand, Saudi Arabia, Indonesia, Japan, Pakistan, Malaysia, India, Australia, Mexico, Morocco, Russia, Kenya, Spain, Argentina, Nigeria, Romania, Sri Lanka, Algeria, Colombia, South Korea, Chile, Bangladesh, Tajikistan, South Africa, Uzbekistan, Kazakhstan, Kyrgyzstan, Uae
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Bangladesh, Romania, Sri Lanka, Algeria, Colombia, Kazakhstan, Malaysia, Japan, Kyrgyzstan, Nigeria, Uzbekistan, South Africa, Tajikistan, Australia
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Place Of Origin: China
Warranty Period: 1 Year
Certification :: Din
Out-of-warranty Service: Online Support
Service System: Online Support
Owned Machinery: Shield Machine
Casting Or Forging :: Forging
Application Industry：: Tunnel Construction
品牌: XTC
Part Name :: Cutter Ring
Material：: Mold Steel; 42CrMo; Tunsten Carbide
| 销售单位 | : | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it
1、产品优势：
XTC TBM 和顶管刀具的刀环专为具有高冲击要求的挑战性地层而设计。采用先进的梯度热处理技术，确保坚硬的外表面和较软的内芯，与标准产品相比，抗冲击性提高了一倍。这些切割环专为单轴抗压强度超过 40 MPa 的硬岩和超硬岩层而设计，即使在复杂的地质条件下也能提供卓越的性能。
2、产品型号：
TBM盾构刀环有JLDQ001、JLDQ002、JLDQ003三个牌号，适用于岩石硬度40MPa至240MPa（见下表） ，满足多种工况要求。
硬质合金球齿插入式切割环：
高性能硬质合金球齿专为中度风化复合地层而设计，可确保更长的挖掘距离、延长使用寿命并缩短更换间隔，从而提高隧道掘进工具（尤其是 XTC TBM 刀具）的整体工作效率。
|
Material Quality |
Hardness（HRC） |
Impact Toughness AKu（J/cm2） |
Applicable working conditions |
|
JLDQ001 |
56～59 |
20～24 |
Suitable for medium hard rock formations with rock strength of 40-150MPa and composite formations with uneven hardness and softness |
|
JLDQ002 |
58～61 |
24～28 |
Suitable for full section extremely hard rock formations with rock strength of 180-240MPa |
|
JLDQ003 |
57～60 |
28～32 |
Suitable for hard rock layers with rock strength of 40-200MPa and composite layers with uneven hardness and softness |
