$200-250 /Set/Sets
| 付款类型: | L/C,T/T,D/P,D/A |
| 国际贸易术语解释通则: | FOB,CFR,CIF,EXW |
| 最小订单: | 1 Set/Sets |
| 运输: | Ocean,Land,Air |
| 港口: | Shenzhen,Shanghai,qingdao |
分享:
手机号: GD80
品牌: XTC
Origin: 中国
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Turkey, Canada, Egypt
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Canada, Turkey
地位: New
Types Of: Core Drilling Rig
Engine Type: Gasoline
Place Of Origin: China
Use: Water Well
Warranty Period: 3 Years
Marketing Type: Ordinary Product
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 2 Years
| 销售单位 | : | Set/Sets |
| 程序包类型 | : | 由木头 |
The file is encrypted. Please fill in the following information to continue accessing it

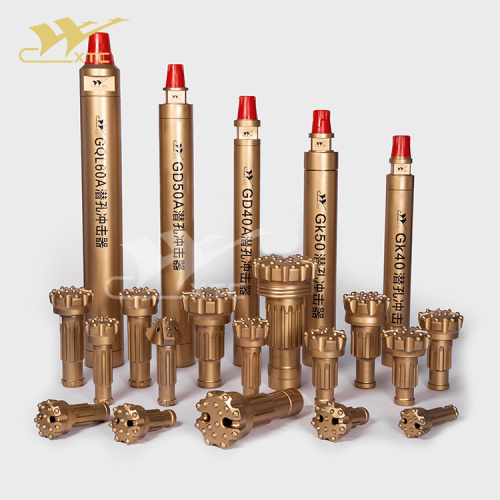

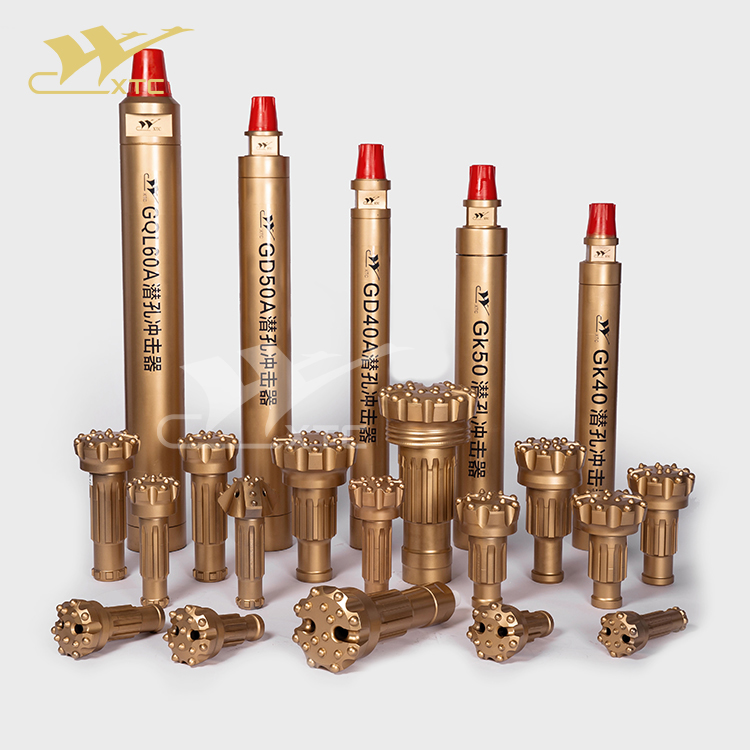

XTC 潜孔钻头（DTH 钻头）是钻井作业中的关键部件，特别是采矿、建筑和采石场。它们设计用于与潜孔锤配合使用，向钻头提供高频冲击，从而实现高效的岩石穿透。
潜孔锤是钻井、凿岩和采矿钻探应用中的必备工具。这种先进的设备结合了耐用性、效率和精度，可确保在充满挑战的环境中实现最佳性能。无论您是在水井、矿物开采还是地质勘探中工作，这款潜孔钻锤都能提供一致的结果。
材质：主体：通常由高强度耐磨钢制成，按钮/刀具：由碳化钨制成，极其坚硬耐用。
该潜孔冲击器的主要特点包括能够承受极端条件的坚固结构、提高操作效率的流线型设计以及确保平稳、不间断钻孔的可靠机构。其紧凑的尺寸便于操作和操作，适合小规模和大规模操作。此外，潜孔锤配备了高质量的冲击系统，可最大限度地提高穿透力，同时最大限度地减少部件的磨损。
应用： 钻井用潜孔锤、凿岩用潜孔锤、矿山钻探用潜孔锤
|
High Air Pressure with foot valve DTH Hammer
|
|||||
|
Model
|
Thread Connection
|
OD(mm)
|
Rec.Hole Size
|
Shank Style
|
Working Pressure(Bar)
|
|
CD35
|
API 2 3/8" Reg
|
φ82mm
|
φ90-φ105
|
DHD3.5
CD35
|
1.0-1.5Mpa
|
|
CD45
|
API 2 3/8" Reg
|
φ99mm
|
φ110-φ135
|
Cop44
DHD340
CD45
|
1.0-2.5Mpa
|
|
CSD4
|
API 2 3/8" Reg
|
φ99mm
|
φ110-φ135
|
SD4
CSD4
|
1.0-2.5Mpa
|
|
CQL40
|
API 2 3/8" Reg
|
φ99mm
|
φ110-φ135
|
QL40
CQL40
|
1.0-2.5Mpa
|
|
CD55
|
API 2 3/8" Reg
API 3 1/2" Reg
|
φ125mm
|
φ135-φ155
|
Cop54
DHD350R
CD55
|
1.0-2.5Mpa
|
|
CSD5
|
API 3 1/2" Reg
|
φ125mm
|
φ135-φ155
|
SD5
CSD5
|
1.0-2.5Mpa
|
|
CQL50
|
API 3 1/2" Reg
|
φ125mm
|
φ135-φ155
|
Cop54
QL50
CQL50
|
1.0-2.5Mpa
|
|
CD65
|
API 3 1/2" Reg
|
φ148mm
|
φ155-φ190
|
Cop64
DHD360
CD65
|
1.0-2.5Mpa
|
|
CSD6
|
API 3 1/2" Reg
|
φ148mm
|
φ155-φ190
|
SD6
CSD6
|
1.0-2.5Mpa
|
|
CQL60
|
API 3 1/2" Reg
|
φ148mm
|
φ155-φ190
|
Cop64
QL60
CQL60
|
1.0-2.5Mpa
|
|
CD85
|
API 4 1/2" Reg
|
φ185mm
|
φ195-φ254
|
Cop84
DHD380
CD85
|
1.0-2.5Mpa
|
|
CSD85
|
API 4 1/2" Reg
|
φ185mm
|
φ195-φ254
|
SD8
CSD8
|
1.0-2.5Mpa
|
|
CQL80
|
API 4 1/2" Reg
|
φ185mm
|
φ195-φ254
|
QL80
CQL80
|
1.0-2.5Mpa
|
|
CSD10
|
API 4 1/2" Reg
API 5 1/2" Reg
API 6 5/8" Reg
|
φ225mm
|
φ254-φ311
|
SD10
CSD10
|
1.0-2.5Mpa
|
|
CN100
|
API 6 5/8" Reg
|
φ225mm
|
φ254-φ311
|
NUMA100
CN100
|
1.0-2.5Mpa
|
|
CSD12
|
API 6 5/8" Reg
|
φ275mm
|
φ305-φ445
|
SD12
CSD12
|
1.0-2.5Mpa
|
