$500≥1Set/Sets
| 付款类型: | L/C,T/T,D/P,D/A |
| 国际贸易术语解释通则: | FOB,CFR,CIF,EXW,FAS |
| 最小订单: | 1 Set/Sets |
| 运输: | Ocean,Land,Air,Express |
| 港口: | Shenzhen,QingDao,Shanghai |
分享:
品牌: XTC
Origin: 中国
证明: ISO9001
地位: New
Applicable Industry: Energy &Amp; Mining
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Canada, Egypt, Japan, Malaysia, Turkey, United Kingdom, United States, Italy
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, United Kingdom, India
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Place Of Origin: China
Warranty Period: 1 Year
Service System: Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
| 销售单位 | : | Set/Sets |
| 程序包类型 | : | 木制的 |
| 图片示例 | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
1.中气压潜孔锤，不带底阀。
2、中气压孔直径：110-135mm。
3.端面类型：圆心钻头/凹面/凸面/双规面/平面钻头。
4、硬质合金钮扣形状：圆顶/圆形钮扣 抛物线/半弹道钮扣 弹道钮扣 尖钮 平钮
5. 钻岩类型：花岗岩、大理石、石灰石、玄武岩等。
6. 项目类型：爆破孔、采石场、锚固、基础设施、地热孔、钻井等。
7.应用：采石、露天采矿、地下采矿、钻井、基础钻探

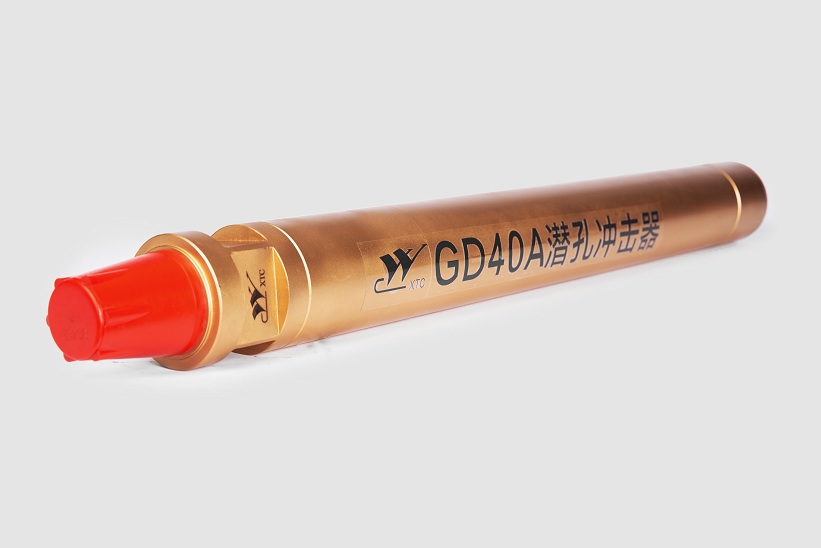

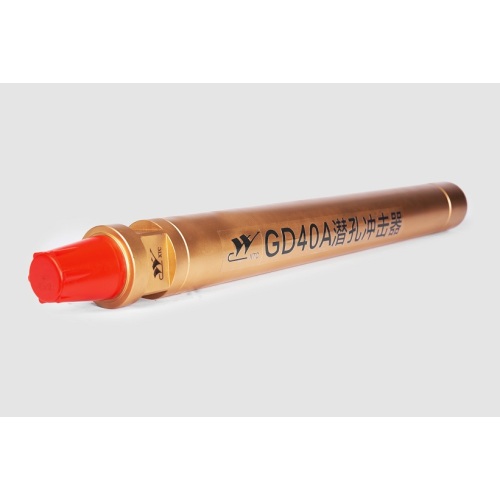

Model |
GD40 |
Foot Valve |
Yes |
Recommended Rotation Speed |
35-65r/min |
Air Pressure |
High 1.0-2.5Mpa |
Impact Rate under 1.7Mpa |
27Hz |
Air Consumption |
6.5m3-14 m3/min |
OD |
99mm |
Total Length (without bit) |
1030mm |
Total Weight (without bit) |
39kg |
Hole Range |
110mm-135mm |
Connection Thread |
API 2 3/8’’ Reg |
Bit Shank |
DHD340A, COP44, DHD 4, QL 340, Terranox 4 |
Application |
Quarrying, Surface Mining, Underground Mining, Well Drilling, Foundation Drilling |
