XTC GD40 系列潜孔冲击器

$300≥1Set/Sets

付款类型:	L/C,T/T,D/P
国际贸易术语解释通则:	FOB,EXW,FAS,FCA,DDP,CPT,CFR,DDU
最小订单:	1 Set/Sets
运输:	Ocean,Land,Air,Express
港口:	Shenzhen,Qingdao,Shanghai

现在联系

产品描述

产品属性

包装和交付

产品描述

产品属性

手机号: GD40 DTH hammer

品牌: XTC

Origin: 中国

证明: ISO9001

地位: New

Warranty Period: 1 Year

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Russia, Philippines, United Kingdom, Canada, France, Egypt, Peru, Brazil

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Turkey, Canada, Chile, Russia, Brazil, United States

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Place Of Origin: China

Part Name: Drill Bit

Owned Machinery: Drilling Tool

证明: Din

Material: Iron

Casting Or Forging: Forging

Application Industry: Well Drilling

包装和交付

销售单位	:	Set/Sets

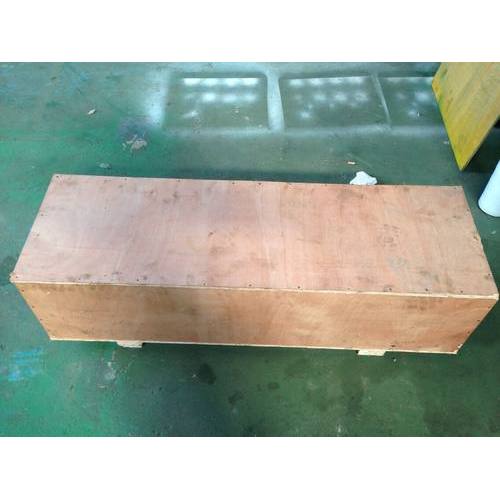

程序包类型	:	木制的
图片示例	:

The file is encrypted. Please fill in the following information to continue accessing it

XTC电锤



产品描述

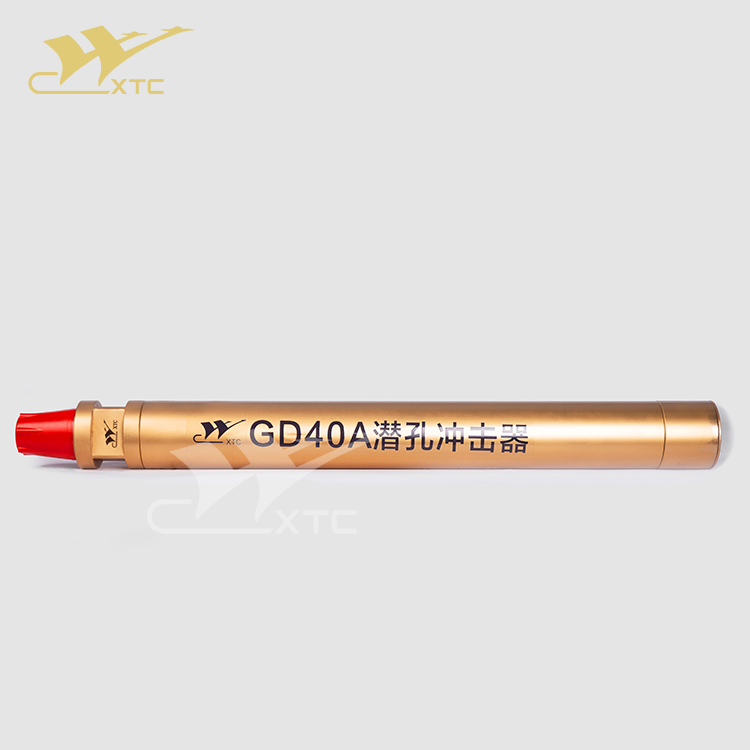

2 3/8" 调节销 4 英寸高气压潜孔锤冲击器GD40 DHD 340A 带底阀

4英寸潜孔锤GD40与带底阀的DHD 340A类似，用于钻孔范围从110mm到135mm。 GD40气压范围为1.0Mpa至2.5Mpa，建议冲击率为17Mpa以下27Hz。 1.0Mpa 时耗气量为 6.5m3，2.4Mpa 时耗气量为 14m3。

它具有以下优点，
1.阀门配气，更可靠。
2.活塞设计简单，使用寿命长
3.更多的能量传递，更快的钻井速度，更低的空气和油消耗。
4、内部零件少，结构简单，所有零件均经过热处理，使用寿命长，故障率低，易于维护。
5、顶接头、驱动卡盘和外筒采用多级螺纹连接，拆卸方便。

Model	GD40
Foot Valve	No
Recommended Rotation Speed	35-65r/min
Air Pressure	High 1.0-2.5Mpa
Impact Rate under 1.7Mpa	27Hz
Air Consumption	6.5m³-14 m³/min
OD	99mm
Total Length (without bit)	1030mm
Total Weight (without bit)	39kg
Hole Range	110mm-135mm
Connection Thread	API 2 3/8’’ Reg
Bit Shank	DHD340A, COP44, DHD 4, QL 340, Terranox 4
Application	Quarrying, Surface Mining, Underground Mining, Well Drilling, Foundation Drilling,DTH drill bits,drill bits.
