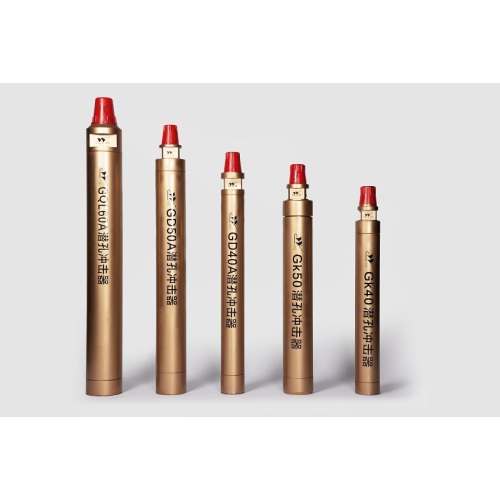

3 1/2" Reg 6 英寸潜孔锤

$300≥1Set/Sets

现在联系

产品描述

产品属性

手机号: GD60 DTH hammer

品牌: XTC

Origin: 中国

证明: ISO9001

地位: New

Warranty Period: 1 Year

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Japan, Indonesia, France, Egypt, Canada, Germany

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Canada, United Kingdom, France, Germany

Video Factory Inspection: Not Available

Mechanical Test Report: Not Available

Marketing Type: Ordinary Product

Place Of Origin: China

Part Name: Drill Bit

Owned Machinery: Drilling Tool

证明: Din

Material: Stainless Steel

Casting Or Forging: Forging

Application Industry: Well Drilling

包装和交付

销售单位	:	Set/Sets
程序包类型	:	木制的

The file is encrypted. Please fill in the following information to continue accessing it

XTC电锤



产品描述

6英寸潜孔锤GD60与带底阀的DHD 360类似，用于钻孔范围从155mm到190mm。 GD60气压范围为1.0Mpa至2.5Mpa，建议冲击率为17Mpa以下23Hz。 1.0Mpa 时耗气量为 9m3，2.4Mpa 时耗气量为 26m3。

产品描述

它具有以下优点，
1.阀门配气，更可靠。
2.活塞设计简单，使用寿命长
3.更多的能量传递，更快的钻井速度，更低的空气和油消耗。
4、内部零件少，结构简单，所有零件均经过热处理，使用寿命长，故障率低，易于维护。
5、顶接头、驱动卡盘和外筒采用多级螺纹连接，拆卸方便。

潜孔钻头产品参数：
1.高、低气压潜孔钻头
2.高气压孔直径：155-190mm
3.端面类型：圆心钻头/凹面/凸面/双规面/平面钻头
4.硬质合金钮扣形状：半球形/圆形钮扣抛物线/半弹道钮扣弹道钮扣尖钮平钮
5. 钻岩类型：花岗岩、大理石、石灰石、玄武岩等。

6. 项目类型：爆破孔、采石场、锚固、基础设施、地热孔、钻井等。

Model	GD60
Foot Valve	No
Recommended Rotation Speed	20-40r/min
Air Pressure	High 1.0-2.5Mpa
Impact Rate under 1.7Mpa	23Hz
Air Consumption	9m³-26 m³/min
OD	99mm
Total Length (without bit)	1248mm
Total Weight (without bit)	100kg
Hole Range	155mm-190mm
Connection Thread	API 3 1/2’’ Reg
Bit Shank	DHD360, COP64, DHD 6, Terranox 6
Application	Quarrying, Surface Mining, Underground Mining, Well Drilling, Foundation Drilling
